rds_private.h File Reference

#include <rvm/rvm.h>
#include <rvm/rvm_segment.h>
#include <rvm/rds.h>
#include <cthreads.h>

Include dependency graph for rds_private.h:

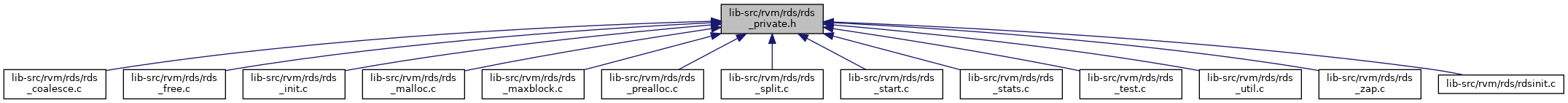

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fbt
struct	free_list_t
struct	heap_header_t

Macros
#define	_RDS_PRIVATE_H_
#define	RVM_MUTEX   struct mutex
#define	RVM_CONDITION   struct condition
#define	START_CRITICAL   mutex_lock(&heap_lock)
#define	LEAVE_CRITICAL_SECTION   goto end_critical
#define	END_CRITICAL
#define	FREE_GUARD   0x345298af
#define	ALLOC_GUARD   0x783bd92c
#define	END_GUARD   0xfd10a32e
#define	RDS_BLOCK_HDR_SIZE   (sizeof(block_size_t) + 2 * sizeof(guard_t))
#define	BLOCK_END(bp)    ((guard_t *)((char *)(bp) + ((bp)->size * RDS_CHUNK_SIZE)) - 1)
#define	USER_BLOCK(bp)   ((char *)&((bp)->prev))
#define	BLOCK_HDR(bp)    ((free_block_t *)((char *)(bp) - (sizeof(block_size_t) + sizeof(guard_t))))
#define	FREE_LIST_GUARD   0xad938945
#define	NEXT_CONSECUTIVE_BLOCK(bp)    ((free_block_t *)((char *)(bp) + ((bp)->size * RDS_CHUNK_SIZE)))
#define	HEAP_LIST_GROWSIZE   20 /* Number of blocks to prealloc */
#define	RDS_HEAP_VERSION   "Dynamic Allocator Using Rvm Release 0.1 1 Dec 1990"
#define	RDS_VERSION_MAX   80
#define	HEAP_INIT   (RecoverableHeapStartAddress != 0)
#define	RDS_VERSION_STAMP   (RecoverableHeapStartAddress->version)
#define	RDS_HEAPLENGTH   (RecoverableHeapStartAddress->heaplength)
#define	RDS_CHUNK_SIZE   (RecoverableHeapStartAddress->chunk_size)
#define	RDS_FREE_LIST   (RecoverableHeapStartAddress->lists)
#define	RDS_NLISTS   (RecoverableHeapStartAddress->nlists)
#define	RDS_MAXLIST   (RecoverableHeapStartAddress->maxlist)
#define	RDS_STATS   (RecoverableHeapStartAddress->stats)
#define	RDS_HIGH_ADDR   (RecoverableHeapHighAddress)
#define	BCOPY(S, D, L)   bcopy((S), (D), (L))
#define	BZERO(D, L)   bzero((D), (L))

Typedefs
typedef unsigned long	block_size_t
typedef unsigned long	guard_t
typedef struct fbt	free_block_t

Functions
int	print_heap ()
free_block_t *	split ()
free_block_t *	get_block ()
int	put_block ()
int	rm_from_list ()
int	merge_with_next_free (free_block_t *fbp, rvm_tid_t *tid, int *err)
void	coalesce (rvm_tid_t *tid, int *err)

Variables
heap_header_t *	RecoverableHeapStartAddress
free_block_t *	RecoverableHeapHighAddress
RVM_MUTEX	heap_lock
int	rds_tracing
FILE *	rds_tracing_file

Macro Definition Documentation

_RDS_PRIVATE_H_

#define _RDS_PRIVATE_H_

ALLOC_GUARD

#define ALLOC_GUARD   0x783bd92c

BCOPY

#define BCOPY	(		S,
			D,
			L
	)		bcopy((S), (D), (L))

BLOCK_END

#define BLOCK_END

(

bp

)

((guard_t *)((char *)(bp) + ((bp)->size * RDS_CHUNK_SIZE)) - 1)

BLOCK_HDR

#define BLOCK_HDR

(

bp

)

((free_block_t *)((char *)(bp) - (sizeof(block_size_t) + sizeof(guard_t))))

BZERO

#define BZERO	(		D,
			L
	)		bzero((D), (L))

END_CRITICAL

#define END_CRITICAL

Value:

    goto end_critical; \
    end_critical:      \
    mutex_unlock(&heap_lock)

END_GUARD

#define END_GUARD   0xfd10a32e

FREE_GUARD

#define FREE_GUARD   0x345298af

FREE_LIST_GUARD

#define FREE_LIST_GUARD   0xad938945

HEAP_INIT

#define HEAP_INIT   (RecoverableHeapStartAddress != 0)

HEAP_LIST_GROWSIZE

#define HEAP_LIST_GROWSIZE   20 /* Number of blocks to prealloc */

LEAVE_CRITICAL_SECTION

#define LEAVE_CRITICAL_SECTION   goto end_critical

NEXT_CONSECUTIVE_BLOCK

#define NEXT_CONSECUTIVE_BLOCK

(

bp

)

((free_block_t *)((char *)(bp) + ((bp)->size * RDS_CHUNK_SIZE)))

RDS_BLOCK_HDR_SIZE

#define RDS_BLOCK_HDR_SIZE   (sizeof(block_size_t) + 2 * sizeof(guard_t))

RDS_CHUNK_SIZE

#define RDS_CHUNK_SIZE   (RecoverableHeapStartAddress->chunk_size)

RDS_FREE_LIST

#define RDS_FREE_LIST   (RecoverableHeapStartAddress->lists)

RDS_HEAP_VERSION

#define RDS_HEAP_VERSION   "Dynamic Allocator Using Rvm Release 0.1 1 Dec 1990"

RDS_HEAPLENGTH

#define RDS_HEAPLENGTH   (RecoverableHeapStartAddress->heaplength)

RDS_HIGH_ADDR

#define RDS_HIGH_ADDR   (RecoverableHeapHighAddress)

RDS_MAXLIST

#define RDS_MAXLIST   (RecoverableHeapStartAddress->maxlist)

RDS_NLISTS

#define RDS_NLISTS   (RecoverableHeapStartAddress->nlists)

RDS_STATS

#define RDS_STATS   (RecoverableHeapStartAddress->stats)

RDS_VERSION_MAX

#define RDS_VERSION_MAX   80

RDS_VERSION_STAMP

#define RDS_VERSION_STAMP   (RecoverableHeapStartAddress->version)

RVM_CONDITION

#define RVM_CONDITION   struct condition

RVM_MUTEX

#define RVM_MUTEX   struct mutex

START_CRITICAL

#define START_CRITICAL   mutex_lock(&heap_lock)

USER_BLOCK

#define USER_BLOCK

(

bp

)

((char *)&((bp)->prev))

Typedef Documentation

block_size_t

typedef unsigned long block_size_t

free_block_t

typedef struct fbt free_block_t

guard_t

typedef unsigned long guard_t

Function Documentation

coalesce()

void coalesce	(	rvm_tid_t *	tid,
		int *	err
	)

get_block()

free_block_t * get_block

(

)

merge_with_next_free()

int merge_with_next_free	(	free_block_t *	fbp,
		rvm_tid_t *	tid,
		int *	err
	)

print_heap()

int print_heap

(

)

put_block()

int put_block

(

)

rm_from_list()

int rm_from_list

(

)

split()

free_block_t * split

(

)

Variable Documentation

heap_lock

RVM_MUTEX heap_lock

extern

rds_tracing

int rds_tracing

extern

rds_tracing_file

FILE* rds_tracing_file

extern

RecoverableHeapHighAddress

free_block_t* RecoverableHeapHighAddress

extern

RecoverableHeapStartAddress

heap_header_t* RecoverableHeapStartAddress

extern
